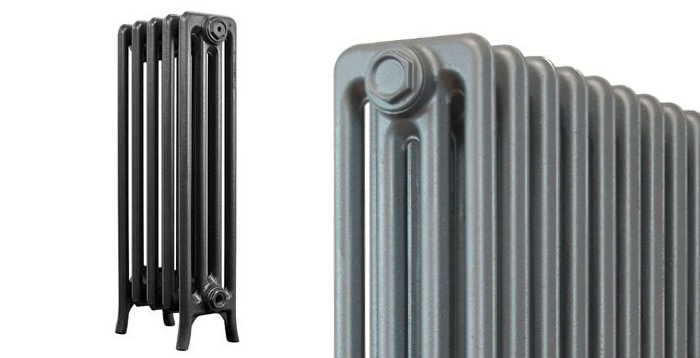

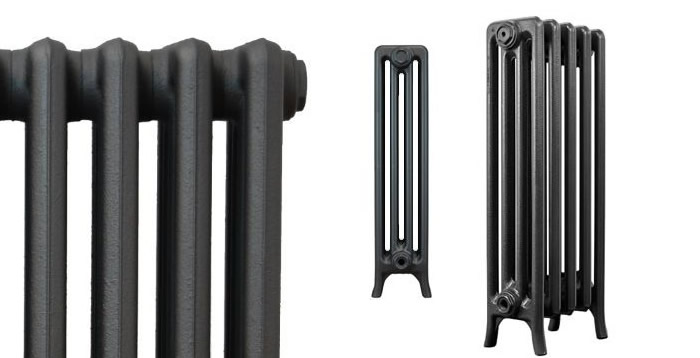

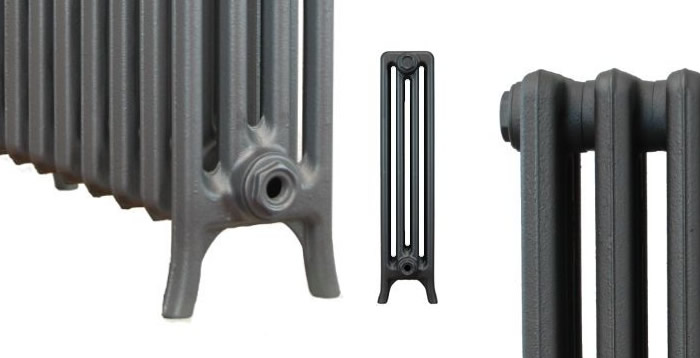

CRANE® Historic 4 Column Cast Iron Radiators – 750mm
- Description
-
The 750mm CRANE® Historic 4 Column Cast Iron Radiator is a superb choice for period rooms where you want confident proportions and strong, steady warmth without going to a very tall radiator.
The deeper 4-column body provides excellent surface area and comfort, making it ideal for living rooms, dining rooms and larger bedrooms — particularly where you want more output from a shorter run of wall space.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height 750mm BTU's per section 375 Watts per section 110 Radiator Depth 160mm Section Length 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted (ex VAT) Precious Metal (ex VAT) HC2-500 500mm 60mm 3kg 47 160 £43 £60 HC3-500 500mm 60mm 4kg 53 180 £46 £65 HC4-500 500mm 60mm 5kg 70 238 £48 £66 HC2-650 650mm 60mm 4kg 53 180 £46 £70 HC3-650 650mm 60mm 5kg 73 250 £53 £78 HC4-650 650mm 60mm 6kg 94 320 £58 £83 HC2-750 750mm 60mm 5kg 61 210 £48 £72 HC3-750 750mm 60mm 6kg 88 300 £62 £87 HC4-750 750mm 60mm 7kg 110 375 £60 £85 HC2-1050 1050mm 60mm 6kg 89 300 £60 £90 HC3-1050 1050mm 60mm 7kg 123 420 £71 £111 HC4-1050 1050mm 60mm 8kg 152 520 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Historic 4 Column 750mm Cast Iron Radiators
Radiator Height:
750mm
(approx. 29 1/2”)
Radiator Depth:
160mm
(approx. 6 1/4”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's C4C-750-03 3 210mm 8 1/4” 330 Watts 1125 BTU's C4C-750-04 4 270mm 10 5/8” 440 Watts 1500 BTU's C4C-750-05 5 330mm 13” 550 Watts 1875 BTU's C4C-750-06 6 390mm 15 3/8” 660 Watts 2250 BTU's C4C-750-07 7 450mm 17 3/4” 770 Watts 2625 BTU's C4C-750-08 8 510mm 20 1/8” 880 Watts 3000 BTU's C4C-750-09 9 570mm 22 1/2” 990 Watts 3375 BTU's C4C-750-10 10 630mm 24 3/4” 1100 Watts 3750 BTU's C4C-750-11 11 690mm 27 1/8” 1210 Watts 4125 BTU's C4C-750-12 12 750mm 29 1/2” 1320 Watts 4500 BTU's C4C-750-13 13 810mm 31 7/8” 1430 Watts 4875 BTU's C4C-750-14 14 870mm 34 1/4” 1540 Watts 5250 BTU's C4C-750-15 15 930mm 36 5/8” 1650 Watts 5625 BTU's C4C-750-16 16 990mm 39” 1760 Watts 6000 BTU's C4C-750-17 17 1050mm 41 3/8” 1870 Watts 6375 BTU's C4C-750-18 18 1110mm 43 3/4” 1980 Watts 6750 BTU's C4C-750-19 19 1170mm 46 1/8” 2090 Watts 7125 BTU's C4C-750-20 20 1230mm 48 3/8” 2200 Watts 7500 BTU's C4C-750-21 21 1290mm 50 3/4” 2310 Watts 7875 BTU's C4C-750-22 22 1350mm 53 1/8” 2420 Watts 8250 BTU's C4C-750-23 23 1410mm 55 1/2” 2530 Watts 8625 BTU's C4C-750-24 24 1470mm 57 7/8” 2640 Watts 9000 BTU's C4C-750-25 25 1530mm 60 1/4” 2750 Watts 9375 BTU's C4C-750-26 26 1590mm 62 5/8” 2860 Watts 9750 BTU's C4C-750-27 27 1650mm 65” 2970 Watts 10125 BTU's C4C-750-28 28 1710mm 67 3/8” 3080 Watts 10500 BTU's C4C-750-29 29 1770mm 69 5/8” 3190 Watts 10875 BTU's C4C-750-30 30 1830mm 72” 3300 Watts 11250 BTU's C4C-750-31 31 1890mm 74 3/8” 3410 Watts 11625 BTU's C4C-750-32 32 1950mm 76 3/4” 3520 Watts 12000 BTU's C4C-750-33 33 2010mm 79 1/8” 3630 Watts 12375 BTU's C4C-750-34 34 2070mm 81 1/2” 3740 Watts 12750 BTU's C4C-750-35 35 2130mm 83 7/8” 3850 Watts 13125 BTU's C4C-750-36 36 2190mm 86 1/4” 3960 Watts 13500 BTU's C4C-750-37 37 2250mm 88 5/8” 4070 Watts 13875 BTU's - Find a Stockist
-
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are assembled and tested in Britain. We have the strictest quality control in the United Kingdom.
