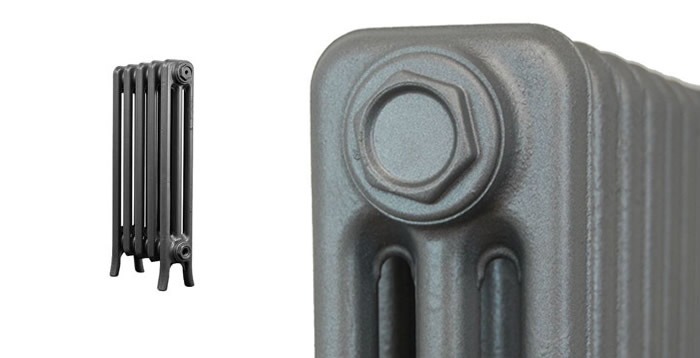

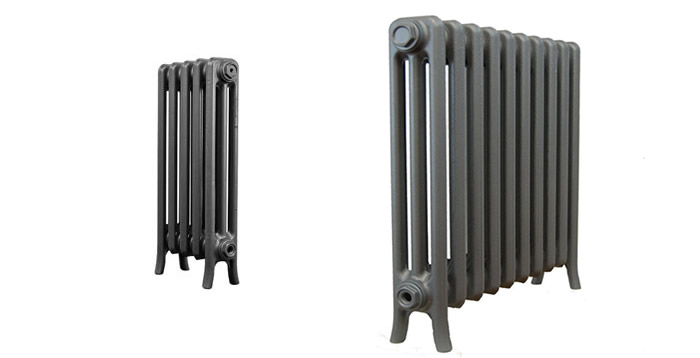

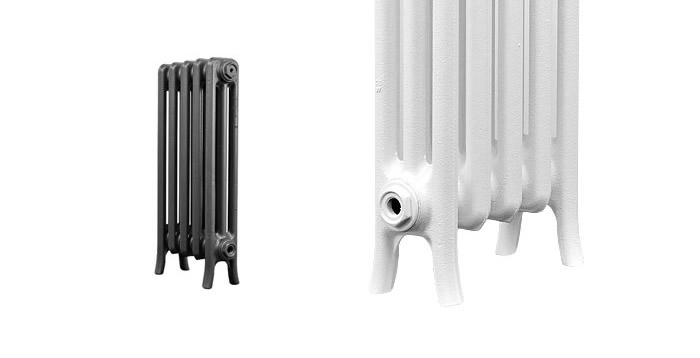

CRANE® Historic 3 Column Cast Iron Radiators – 650mm
- Description
-
The 650mm CRANE® Historic 3 Column Cast Iron Radiator is a compact yet capable option for period interiors, offering a useful boost in heat output while keeping a manageable overall height.
Its deeper 3-column body delivers greater surface area than a 2-column radiator, making it ideal for living rooms, kitchens and bedrooms where traditional character meets everyday practicality.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height 650mm BTU's per section 250 Watts per section 73 Radiator Depth 110mm Section Length 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted (ex VAT) Precious Metal (ex VAT) HC2-500 500mm 60mm 3kg 47 160 £43 £60 HC3-500 500mm 60mm 4kg 53 180 £46 £65 HC4-500 500mm 60mm 5kg 70 238 £48 £66 HC2-650 650mm 60mm 4kg 53 180 £46 £70 HC3-650 650mm 60mm 5kg 73 250 £53 £78 HC4-650 650mm 60mm 6kg 94 320 £58 £83 HC2-750 750mm 60mm 5kg 61 210 £48 £72 HC3-750 750mm 60mm 6kg 88 300 £62 £87 HC4-750 750mm 60mm 7kg 110 375 £60 £85 HC2-1050 1050mm 60mm 6kg 89 300 £60 £90 HC3-1050 1050mm 60mm 7kg 123 420 £71 £111 HC4-1050 1050mm 60mm 8kg 152 520 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Historic 3 Column 650mm Cast Iron Radiators
Radiator Height:
650mm
(approx. 25 5/8”)
Radiator Depth:
110mm
(approx. 4 3/8”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's C3C-650-03 3 210mm 8 1/4” 219 Watts 750 BTU's C3C-650-04 4 270mm 10 5/8” 292 Watts 1000 BTU's C3C-650-05 5 330mm 13” 365 Watts 1250 BTU's C3C-650-06 6 390mm 15 3/8” 438 Watts 1500 BTU's C3C-650-07 7 450mm 17 3/4” 511 Watts 1750 BTU's C3C-650-08 8 510mm 20 1/8” 584 Watts 2000 BTU's C3C-650-09 9 570mm 22 1/2” 657 Watts 2250 BTU's C3C-650-10 10 630mm 24 3/4” 730 Watts 2500 BTU's C3C-650-11 11 690mm 27 1/8” 803 Watts 2750 BTU's C3C-650-12 12 750mm 29 1/2” 876 Watts 3000 BTU's C3C-650-13 13 810mm 31 7/8” 949 Watts 3250 BTU's C3C-650-14 14 870mm 34 1/4” 1022 Watts 3500 BTU's C3C-650-15 15 930mm 36 5/8” 1095 Watts 3750 BTU's C3C-650-16 16 990mm 39” 1168 Watts 4000 BTU's C3C-650-17 17 1050mm 41 3/8” 1241 Watts 4250 BTU's C3C-650-18 18 1110mm 43 3/4” 1314 Watts 4500 BTU's C3C-650-19 19 1170mm 46 1/8” 1387 Watts 4750 BTU's C3C-650-20 20 1230mm 48 3/8” 1460 Watts 5000 BTU's C3C-650-21 21 1290mm 50 3/4” 1533 Watts 5250 BTU's C3C-650-22 22 1350mm 53 1/8” 1606 Watts 5500 BTU's C3C-650-23 23 1410mm 55 1/2” 1679 Watts 5750 BTU's C3C-650-24 24 1470mm 57 7/8” 1752 Watts 6000 BTU's C3C-650-25 25 1530mm 60 1/4” 1825 Watts 6250 BTU's C3C-650-26 26 1590mm 62 5/8” 1898 Watts 6500 BTU's C3C-650-27 27 1650mm 65” 1971 Watts 6750 BTU's C3C-650-28 28 1710mm 67 3/8” 2044 Watts 7000 BTU's C3C-650-29 29 1770mm 69 5/8” 2117 Watts 7250 BTU's C3C-650-30 30 1830mm 72” 2190 Watts 7500 BTU's C3C-650-31 31 1890mm 74 3/8” 2263 Watts 7750 BTU's C3C-650-32 32 1950mm 76 3/4” 2336 Watts 8000 BTU's C3C-650-33 33 2010mm 79 1/8” 2409 Watts 8250 BTU's C3C-650-34 34 2070mm 81 1/2” 2482 Watts 8500 BTU's C3C-650-35 35 2130mm 83 7/8” 2555 Watts 8750 BTU's C3C-650-36 36 2190mm 86 1/4” 2628 Watts 9000 BTU's C3C-650-37 37 2250mm 88 5/8” 2701 Watts 9250 BTU's - Find a Stockist
-
