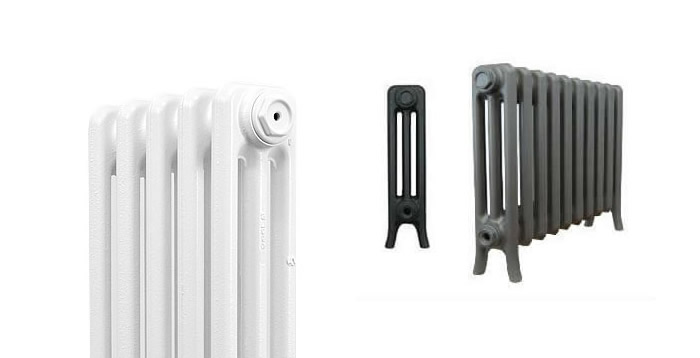

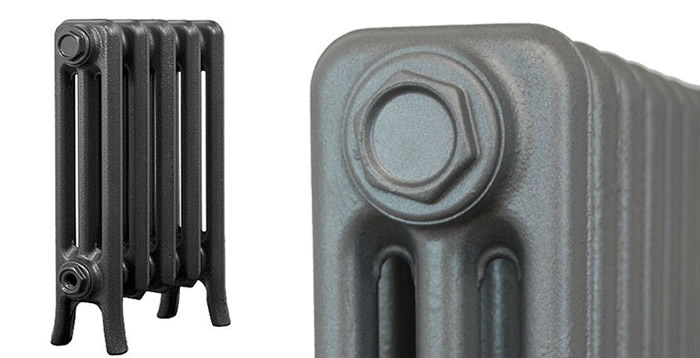

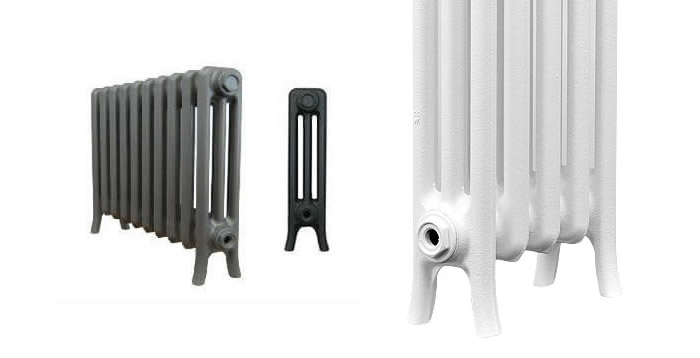

CRANE® Historic 3 Column Cast Iron Radiators – 500mm
- Description
-
The 500mm CRANE® Historic 3 Column Cast Iron Radiator is a compact, characterful option for smaller rooms and tighter spaces where you still want the richer, traditional look of a deeper multi-column radiator.
Its 3-column body provides useful warmth for cloakrooms, studies, kitchens and hallways, while keeping the restrained Historic styling that suits Victorian and Edwardian homes.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height 500mm BTU's per section 180 Watts per section 53 Radiator Depth 110mm Section Length 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Specification Table
-
CRANE Historic 3 Column 500mm Cast Iron Radiators
Radiator Height:
500mm
(approx. 19 5/8”)
Radiator Depth:
110mm
(approx. 4 3/8”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's C3C-500-03 3 210mm 8 1/4” 159 Watts 540 BTU's C3C-500-04 4 270mm 10 5/8” 212 Watts 720 BTU's C3C-500-05 5 330mm 13” 265 Watts 900 BTU's C3C-500-06 6 390mm 15 3/8” 318 Watts 1080 BTU's C3C-500-07 7 450mm 17 3/4” 371 Watts 1260 BTU's C3C-500-08 8 510mm 20 1/8” 424 Watts 1440 BTU's C3C-500-09 9 570mm 22 1/2” 477 Watts 1620 BTU's C3C-500-10 10 630mm 24 3/4” 530 Watts 1800 BTU's C3C-500-11 11 690mm 27 1/8” 583 Watts 1980 BTU's C3C-500-12 12 750mm 29 1/2” 636 Watts 2160 BTU's C3C-500-13 13 810mm 31 7/8” 689 Watts 2340 BTU's C3C-500-14 14 870mm 34 1/4” 742 Watts 2520 BTU's C3C-500-15 15 930mm 36 5/8” 795 Watts 2700 BTU's C3C-500-16 16 990mm 39” 848 Watts 2880 BTU's C3C-500-17 17 1050mm 41 3/8” 901 Watts 3060 BTU's C3C-500-18 18 1110mm 43 3/4” 954 Watts 3240 BTU's C3C-500-19 19 1170mm 46 1/8” 1007 Watts 3420 BTU's C3C-500-20 20 1230mm 48 3/8” 1060 Watts 3600 BTU's C3C-500-21 21 1290mm 50 3/4” 1113 Watts 3780 BTU's C3C-500-22 22 1350mm 53 1/8” 1166 Watts 3960 BTU's C3C-500-23 23 1410mm 55 1/2” 1219 Watts 4140 BTU's C3C-500-24 24 1470mm 57 7/8” 1272 Watts 4320 BTU's C3C-500-25 25 1530mm 60 1/4” 1325 Watts 4500 BTU's C3C-500-26 26 1590mm 62 5/8” 1378 Watts 4680 BTU's C3C-500-27 27 1650mm 65” 1431 Watts 4860 BTU's C3C-500-28 28 1710mm 67 3/8” 1484 Watts 5040 BTU's C3C-500-29 29 1770mm 69 5/8” 1537 Watts 5220 BTU's C3C-500-30 30 1830mm 72” 1590 Watts 5400 BTU's C3C-500-31 31 1890mm 74 3/8” 1643 Watts 5580 BTU's C3C-500-32 32 1950mm 76 3/4” 1696 Watts 5760 BTU's C3C-500-33 33 2010mm 79 1/8” 1749 Watts 5940 BTU's C3C-500-34 34 2070mm 81 1/2” 1802 Watts 6120 BTU's C3C-500-35 35 2130mm 83 7/8” 1855 Watts 6300 BTU's C3C-500-36 36 2190mm 86 1/4” 1908 Watts 6480 BTU's C3C-500-37 37 2250mm 88 5/8” 1961 Watts 6660 BTU's - Find a Stockist
-
We have stockists all over the world. To find a European list of stockists click here.
Alternatively contact us using this website and we will direct you to a local retailer.
CRANE Radiators
All CRANE Radiators are assembled and tested in Britain. We have the strictest quality control in the United Kingdom.
