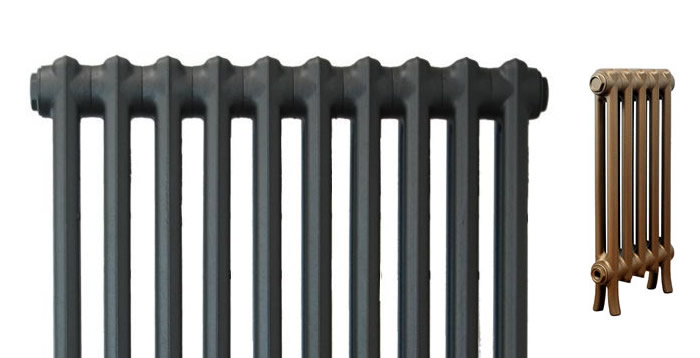

CRANE® Historic 2 Column Cast Iron Radiators – 650mm
- Description
-
The 650mm CRANE® Historic 2 Column Cast Iron Radiator is a practical mid-height option — ideal where you want stronger output than a low radiator, while keeping a neat, understated profile.

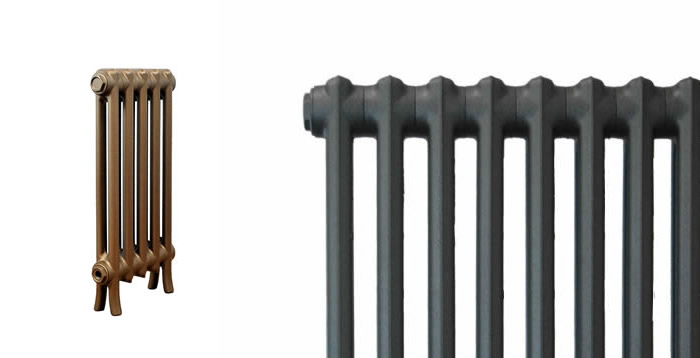

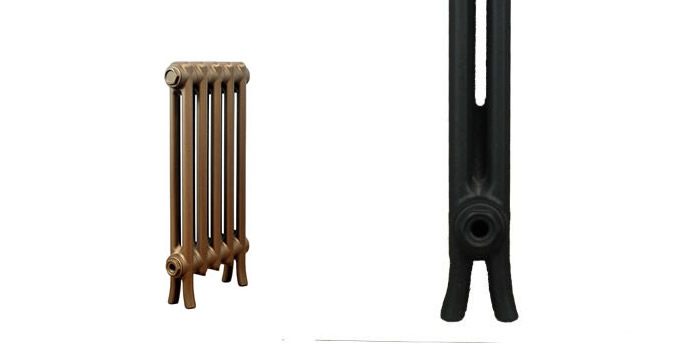

With crisp casting lines, smooth rounded corners and bold feet, it suits Victorian and Edwardian properties beautifully and works just as well in classic contemporary interiors.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height A 650mm BTU's per section 180 Watts per section 53 Radiator Depth B 70mm Section Length C 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted (ex VAT) Precious Metal (ex VAT) HC2-500 500mm 60mm 3kg 47 160 £43 £60 HC3-500 500mm 60mm 4kg 53 180 £46 £65 HC4-500 500mm 60mm 5kg 70 238 £48 £66 HC2-650
650mm 60mm 4kg 53 180 £46 £70 HC3-650 650mm 60mm 5kg 73 250 £53 £78 HC4-650 650mm 60mm 6kg 94 320 £58 £83 HC2-750 750mm 60mm 5kg 61 210 £48 £72 HC3-750 750mm 60mm 6kg 88 300 £62 £87 HC4-750 750mm 60mm 7kg 110 375 £60 £85 HC2-1050 1050mm 60mm 6kg 89 300 £60 £90 HC3-1050 1050mm 60mm 7kg 123 420 £71 £111 HC4-1050 1050mm 60mm 8kg 152 520 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Historic 2 Column 650mm Cast Iron Radiators
Radiator Height:
650mm
(approx. 25 1/2”)
Radiator Depth:
70mm
(2 ¾”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's C2C-650-03 3 210mm 8 1/4” 159 Watts 540 BTU's C2C-650-04 4 270mm 10 5/8” 212 Watts 720 BTU's C2C-650-05 5 330mm 13” 265 Watts 900 BTU's C2C-650-06 6 390mm 15 3/8” 318 Watts 1080 BTU's C2C-650-07 7 450mm 17 3/4” 371 Watts 1260 BTU's C2C-650-08 8 510mm 20 1/8” 424 Watts 1440 BTU's C2C-650-09 9 570mm 22 1/2” 477 Watts 1620 BTU's C2C-650-10 10 630mm 24 3/4” 530 Watts 1800 BTU's C2C-650-11 11 690mm 27 1/8” 583 Watts 1980 BTU's C2C-650-12 12 750mm 29 1/2” 636 Watts 2160 BTU's C2C-650-13 13 810mm 31 7/8” 689 Watts 2340 BTU's C2C-650-14 14 870mm 34 1/4” 742 Watts 2520 BTU's C2C-650-15 15 930mm 36 5/8” 795 Watts 2700 BTU's C2C-650-16 16 990mm 39” 848 Watts 2880 BTU's C2C-650-17 17 1050mm 41 3/8” 901 Watts 3060 BTU's C2C-650-18 18 1110mm 43 3/4” 954 Watts 3240 BTU's C2C-650-19 19 1170mm 46 1/8” 1007 Watts 3420 BTU's C2C-650-20 20 1230mm 48 3/8” 1060 Watts 3600 BTU's C2C-650-21 21 1290mm 50 3/4” 1113 Watts 3780 BTU's C2C-650-22 22 1350mm 53 1/8” 1166 Watts 3960 BTU's C2C-650-23 23 1410mm 55 1/2” 1219 Watts 4140 BTU's C2C-650-24 24 1470mm 57 7/8” 1272 Watts 4320 BTU's C2C-650-25 25 1530mm 60 1/4” 1325 Watts 4500 BTU's C2C-650-26 26 1590mm 62 5/8” 1378 Watts 4680 BTU's C2C-650-27 27 1650mm 65” 1431 Watts 4860 BTU's C2C-650-28 28 1710mm 67 3/8” 1484 Watts 5040 BTU's C2C-650-29 29 1770mm 69 5/8” 1537 Watts 5220 BTU's C2C-650-30 30 1830mm 72” 1590 Watts 5400 BTU's C2C-650-31 31 1890mm 74 3/8” 1643 Watts 5580 BTU's C2C-650-32 32 1950mm 76 3/4” 1696 Watts 5760 BTU's C2C-650-33 33 2010mm 79 1/8” 1749 Watts 5940 BTU's C2C-650-34 34 2070mm 81 1/2” 1802 Watts 6120 BTU's C2C-650-35 35 2130mm 83 7/8” 1855 Watts 6300 BTU's C2C-650-36 36 2190mm 86 1/4” 1908 Watts 6480 BTU's C2C-650-37 37 2250mm 88 5/8” 1961 Watts 6660 BTU's - Find a Stockist
-
