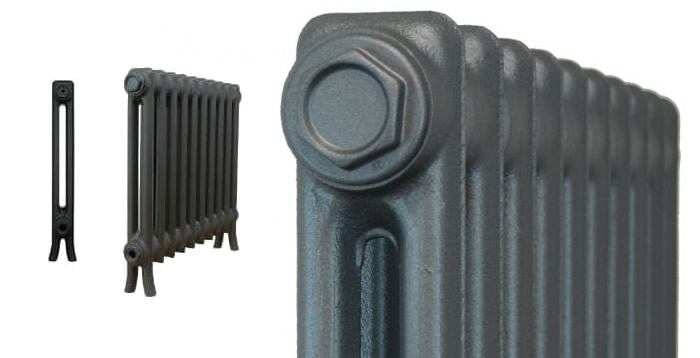

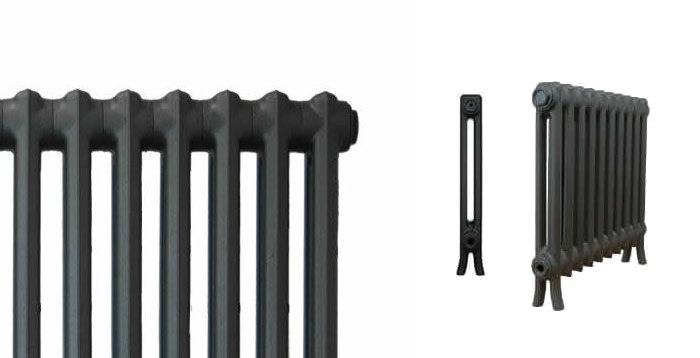

CRANE® Historic 2 Column Cast Iron Radiators – 500mm
- Description
-
The 500mm CRANE® Historic 2 Column Cast Iron Radiator is a compact, understated option — ideal for bedrooms, hallways and smaller spaces where you still want authentic cast iron character.

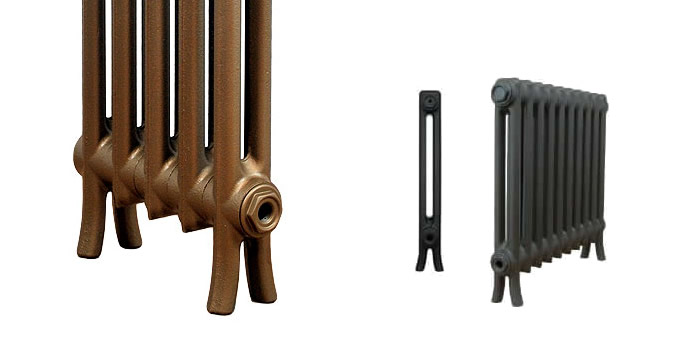

With crisp casting lines, smooth rounded corners and bold feet, this is a timeless period style that sits comfortably in Victorian and Edwardian properties, as well as more classic contemporary interiors.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height A 500mm BTU's per section 134 Watts per section 39 Radiator Depth B 70mm Section Length C 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted (ex VAT) Precious Metal (ex VAT) HC2-500
500mm 60mm 3kg 47 160 £43 £60 HC3-500 500mm 60mm 4kg 53 180 £46 £65 HC4-500 500mm 60mm 5kg 70 238 £48 £66 HC2-650 650mm 60mm 4kg 53 180 £46 £70 HC3-650 650mm 60mm 5kg 73 250 £53 £78 HC4-650 650mm 60mm 6kg 94 320 £58 £83 HC2-750 750mm 60mm 5kg 61 210 £48 £72 HC3-750 750mm 60mm 6kg 88 300 £62 £87 HC4-750 750mm 60mm 7kg 110 375 £60 £85 HC2-1050 1050mm 60mm 6kg 89 300 £60 £90 HC3-1050 1050mm 60mm 7kg 123 420 £71 £111 HC4-1050 1050mm 60mm 8kg 152 520 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Historic 2 Column 500mm Cast Iron Radiators
Radiator Height:
500mm
(approx. 20”)
Radiator Depth:
70mm
(2 ¾”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's C2C-500-03 3 210mm 8 1/4” 117 Watts 402 BTU's C2C-500-04 4 270mm 10 5/8” 156 Watts 536 BTU's C2C-500-05 5 330mm 13” 195 Watts 670 BTU's C2C-500-06 6 390mm 15 3/8” 234 Watts 804 BTU's C2C-500-07 7 450mm 17 3/4” 273 Watts 938 BTU's C2C-500-08 8 510mm 20 1/8” 312 Watts 1072 BTU's C2C-500-09 9 570mm 22 1/2” 351 Watts 1206 BTU's C2C-500-10 10 630mm 24 3/4” 390 Watts 1340 BTU's C2C-500-11 11 690mm 27 1/8” 429 Watts 1474 BTU's C2C-500-12 12 750mm 29 1/2” 468 Watts 1608 BTU's C2C-500-13 13 810mm 31 7/8” 507 Watts 1742 BTU's C2C-500-14 14 870mm 34 1/4” 546 Watts 1876 BTU's C2C-500-15 15 930mm 36 5/8” 585 Watts 2010 BTU's C2C-500-16 16 990mm 39” 624 Watts 2144 BTU's C2C-500-17 17 1050mm 41 3/8” 663 Watts 2278 BTU's C2C-500-18 18 1110mm 43 3/4” 702 Watts 2412 BTU's C2C-500-19 19 1170mm 46 1/8” 741 Watts 2546 BTU's C2C-500-20 20 1230mm 48 3/8” 780 Watts 2680 BTU's C2C-500-21 21 1290mm 50 3/4” 819 Watts 2814 BTU's C2C-500-22 22 1350mm 53 1/8” 858 Watts 2948 BTU's C2C-500-23 23 1410mm 55 1/2” 897 Watts 3082 BTU's C2C-500-24 24 1470mm 57 7/8” 936 Watts 3216 BTU's C2C-500-25 25 1530mm 60 1/4” 975 Watts 3350 BTU's C2C-500-26 26 1590mm 62 5/8” 1014 Watts 3484 BTU's C2C-500-27 27 1650mm 65” 1053 Watts 3618 BTU's C2C-500-28 28 1710mm 67 3/8” 1092 Watts 3752 BTU's C2C-500-29 29 1770mm 69 5/8” 1131 Watts 3886 BTU's C2C-500-30 30 1830mm 72” 1170 Watts 4020 BTU's C2C-500-31 31 1890mm 74 3/8” 1209 Watts 4154 BTU's C2C-500-32 32 1950mm 76 3/4” 1248 Watts 4288 BTU's C2C-500-33 33 2010mm 79 1/8” 1287 Watts 4422 BTU's C2C-500-34 34 2070mm 81 1/2” 1326 Watts 4556 BTU's C2C-500-35 35 2130mm 83 7/8” 1365 Watts 4690 BTU's C2C-500-36 36 2190mm 86 1/4” 1404 Watts 4824 BTU's C2C-500-37 37 2250mm 88 5/8” 1443 Watts 4958 BTU's - Find a Stockist
-
