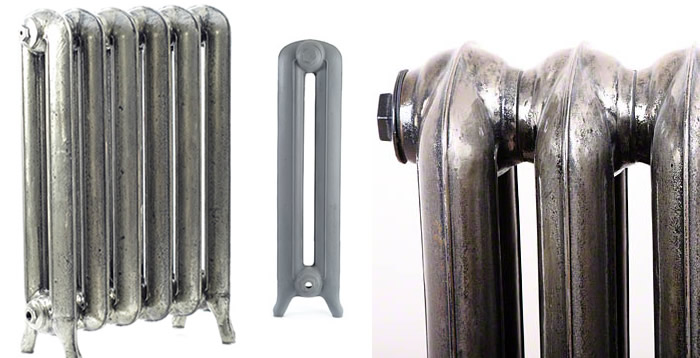

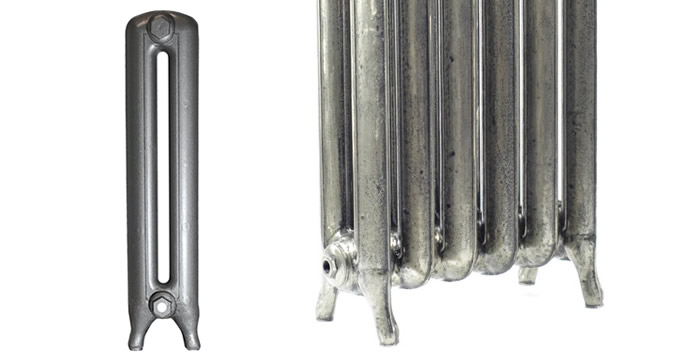

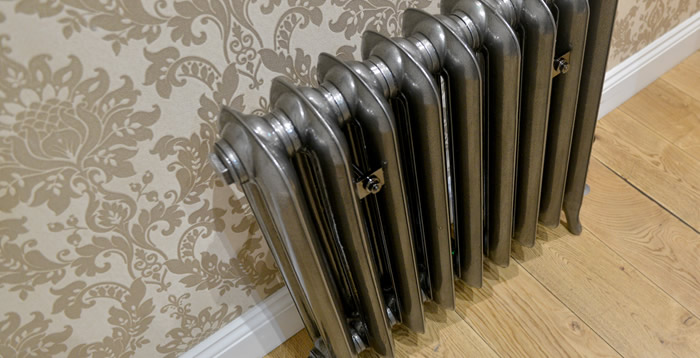

CRANE® Elegant Cast Iron Radiators – 810mm
- Description
-
The 810mm CRANE® Elegant Cast Iron Radiator is a tall, refined statement radiator that pairs graceful traditional detailing with powerful, steady warmth.
Ideal for larger period rooms and higher ceilings, the Elegant range brings classic character to Victorian and Edwardian interiors, while working beautifully as a focal point in more contemporary schemes.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height 810mm BTU's per section 485 Watts per section 142 Radiator Depth 190mm Section Length 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted Precious Metal ECS-560 560mm 77mm 8kg 86 296 £66 £84 ECS-760 760mm 77mm 10kg 120 407 £75 £100 ECS-810
810mm 77mm 11.5kg 142 485 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Elegant 810mm Cast Iron Radiators
Radiator Height:
810mm
(approx. 31 7/8”)
Radiator Depth:
190mm
(approx. 7 1/2”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's CE-810-03 3 210mm 8 1/4” 426 Watts 1455 BTU's CE-810-04 4 270mm 10 5/8” 568 Watts 1940 BTU's CE-810-05 5 330mm 13” 710 Watts 2425 BTU's CE-810-06 6 390mm 15 3/8” 852 Watts 2910 BTU's CE-810-07 7 450mm 17 3/4” 994 Watts 3395 BTU's CE-810-08 8 510mm 20 1/8” 1136 Watts 3880 BTU's CE-810-09 9 570mm 22 1/2” 1278 Watts 4365 BTU's CE-810-10 10 630mm 24 3/4” 1420 Watts 4850 BTU's CE-810-11 11 690mm 27 1/8” 1562 Watts 5335 BTU's CE-810-12 12 750mm 29 1/2” 1704 Watts 5820 BTU's CE-810-13 13 810mm 31 7/8” 1846 Watts 6305 BTU's CE-810-14 14 870mm 34 1/4” 1988 Watts 6790 BTU's CE-810-15 15 930mm 36 5/8” 2130 Watts 7275 BTU's CE-810-16 16 990mm 39” 2272 Watts 7760 BTU's CE-810-17 17 1050mm 41 3/8” 2414 Watts 8245 BTU's CE-810-18 18 1110mm 43 3/4” 2556 Watts 8730 BTU's CE-810-19 19 1170mm 46 1/8” 2698 Watts 9215 BTU's CE-810-20 20 1230mm 48 3/8” 2840 Watts 9700 BTU's CE-810-21 21 1290mm 50 3/4” 2982 Watts 10185 BTU's CE-810-22 22 1350mm 53 1/8” 3124 Watts 10670 BTU's CE-810-23 23 1410mm 55 1/2” 3266 Watts 11155 BTU's CE-810-24 24 1470mm 57 7/8” 3408 Watts 11640 BTU's CE-810-25 25 1530mm 60 1/4” 3550 Watts 12125 BTU's CE-810-26 26 1590mm 62 5/8” 3692 Watts 12610 BTU's CE-810-27 27 1650mm 65” 3834 Watts 13095 BTU's CE-810-28 28 1710mm 67 3/8” 3976 Watts 13580 BTU's CE-810-29 29 1770mm 69 5/8” 4118 Watts 14065 BTU's CE-810-30 30 1830mm 72” 4260 Watts 14550 BTU's CE-810-31 31 1890mm 74 3/8” 4402 Watts 15035 BTU's CE-810-32 32 1950mm 76 3/4” 4544 Watts 15520 BTU's CE-810-33 33 2010mm 79 1/8” 4686 Watts 16005 BTU's CE-810-34 34 2070mm 81 1/2” 4828 Watts 16490 BTU's CE-810-35 35 2130mm 83 7/8” 4970 Watts 16975 BTU's CE-810-36 36 2190mm 86 1/4” 5112 Watts 17460 BTU's CE-810-37 37 2250mm 88 5/8” 5254 Watts 17945 BTU's - Find a Stockist
-
