CRANE® Elegant Cast Iron Radiators – 760mm
- Description
-

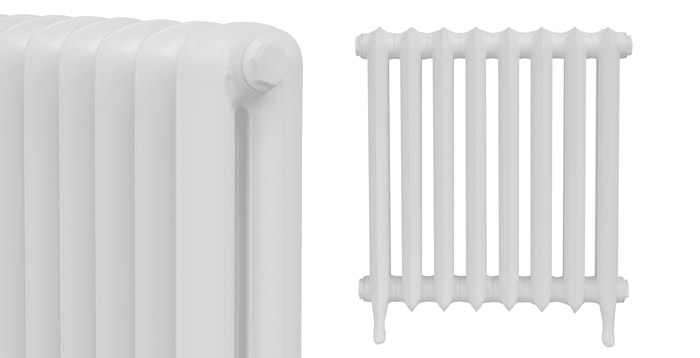

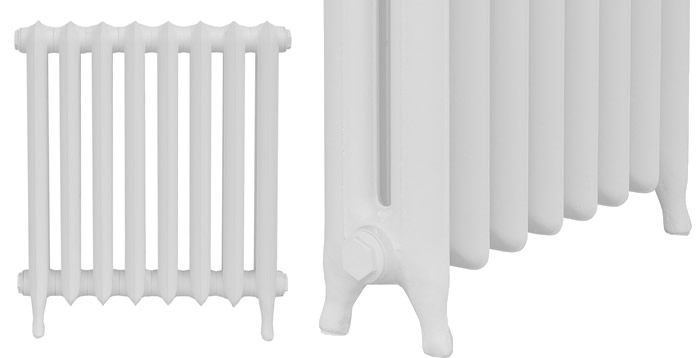

The 760mm CRANE® Elegant Cast Iron Radiator is a refined statement radiator for period rooms, combining graceful detailing with excellent, steady heat output.
Its taller proportions make it ideal for living rooms, dining rooms and hallways, particularly in Victorian and Edwardian homes where you want a more decorative focal point that still performs.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-

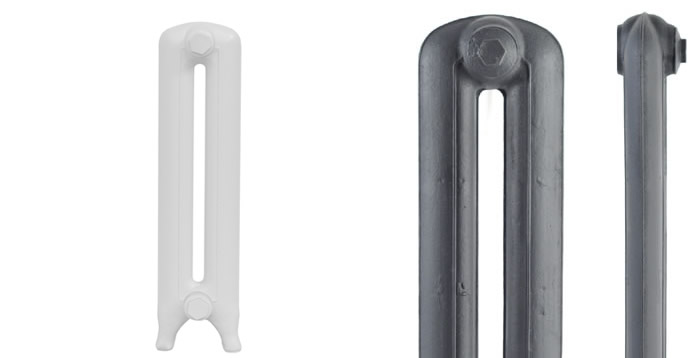

Section Height 760mm BTU's per section 407 Watts per section 120 Radiator Depth 190mm Section Length 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted Precious Metal ECS-560 560mm 77mm 8kg 86 296 £66 £84 ECS-760
760mm 77mm 10kg 120 407 £75 £100 ECS-810 810mm 77mm 11.5kg 142 485 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Elegant 760mm Cast Iron Radiators
Radiator Height:
760mm
(approx. 29 7/8”)
Radiator Depth:
190mm
(approx. 7 1/2”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's CE-760-03 3 210mm 8 1/4” 360 Watts 1221 BTU's CE-760-04 4 270mm 10 5/8” 480 Watts 1628 BTU's CE-760-05 5 330mm 13” 600 Watts 2035 BTU's CE-760-06 6 390mm 15 3/8” 720 Watts 2442 BTU's CE-760-07 7 450mm 17 3/4” 840 Watts 2849 BTU's CE-760-08 8 510mm 20 1/8” 960 Watts 3256 BTU's CE-760-09 9 570mm 22 1/2” 1080 Watts 3663 BTU's CE-760-10 10 630mm 24 3/4” 1200 Watts 4070 BTU's CE-760-11 11 690mm 27 1/8” 1320 Watts 4477 BTU's CE-760-12 12 750mm 29 1/2” 1440 Watts 4884 BTU's CE-760-13 13 810mm 31 7/8” 1560 Watts 5291 BTU's CE-760-14 14 870mm 34 1/4” 1680 Watts 5698 BTU's CE-760-15 15 930mm 36 5/8” 1800 Watts 6105 BTU's CE-760-16 16 990mm 39” 1920 Watts 6512 BTU's CE-760-17 17 1050mm 41 3/8” 2040 Watts 6919 BTU's CE-760-18 18 1110mm 43 3/4” 2160 Watts 7326 BTU's CE-760-19 19 1170mm 46 1/8” 2280 Watts 7733 BTU's CE-760-20 20 1230mm 48 3/8” 2400 Watts 8140 BTU's CE-760-21 21 1290mm 50 3/4” 2520 Watts 8547 BTU's CE-760-22 22 1350mm 53 1/8” 2640 Watts 8954 BTU's CE-760-23 23 1410mm 55 1/2” 2760 Watts 9361 BTU's CE-760-24 24 1470mm 57 7/8” 2880 Watts 9768 BTU's CE-760-25 25 1530mm 60 1/4” 3000 Watts 10175 BTU's CE-760-26 26 1590mm 62 5/8” 3120 Watts 10582 BTU's CE-760-27 27 1650mm 65” 3240 Watts 10989 BTU's CE-760-28 28 1710mm 67 3/8” 3360 Watts 11396 BTU's CE-760-29 29 1770mm 69 5/8” 3480 Watts 11803 BTU's CE-760-30 30 1830mm 72” 3600 Watts 12210 BTU's CE-760-31 31 1890mm 74 3/8” 3720 Watts 12617 BTU's CE-760-32 32 1950mm 76 3/4” 3840 Watts 13024 BTU's CE-760-33 33 2010mm 79 1/8” 3960 Watts 13431 BTU's CE-760-34 34 2070mm 81 1/2” 4080 Watts 13838 BTU's CE-760-35 35 2130mm 83 7/8” 4200 Watts 14245 BTU's CE-760-36 36 2190mm 86 1/4” 4320 Watts 14652 BTU's CE-760-37 37 2250mm 88 5/8” 4440 Watts 15059 BTU's - Find a Stockist
-
