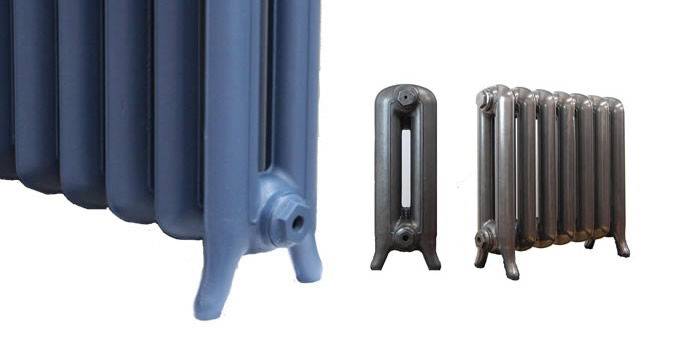

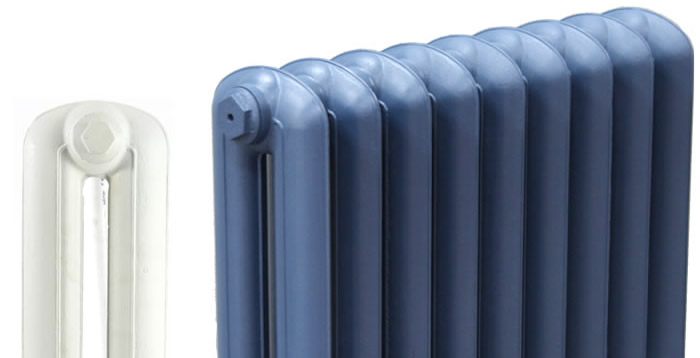

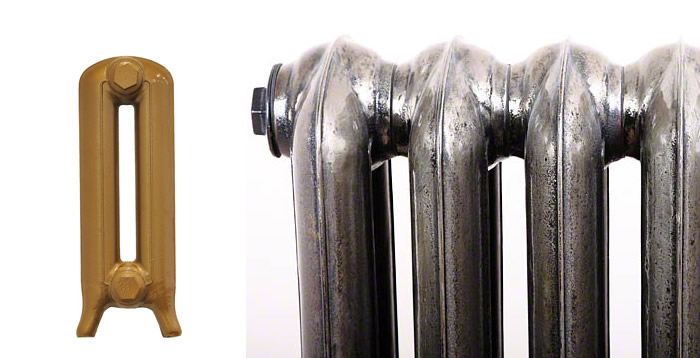

CRANE® Elegant Cast Iron Radiators – 560mm
- Description
-
The 560mm CRANE® Elegant Cast Iron Radiator is designed for rooms where you want a more decorative, refined look, paired with dependable everyday warmth.
With its deeper body and graceful detailing, the Elegant range suits Victorian and Edwardian interiors beautifully, while also adding character to modern schemes that need a more classic focal point.
All CRANE® radiators are assembled and pressure tested in the United Kingdom and supplied with a Lifetime Guarantee.
- Customisation and Finishes
-
CRANE Cast Iron Radiators are cast in Europe and assembled and finished at our UK facility.
CRANE Radiators are available painted in any RAL colour, and we also offer a wide range of specialist finishes including polished options from satin to near mirror.
- Technical Data
-
Section Height 560mm BTU's per section 296 Watts per section 86 Radiator Depth 190mm Section Length 60mm Carbon (C) 3.40%-3.85% Silicon (Si) 1.80%-2.10% Sulfur (S) <0.06% Phosphorus (P) <0.10% Manganese (Mn) 0.40%-0.85% Chromium (Cr) <0.07% Copper (Cu) <0.08% Tensile Variance <0.01% Section Width Tolerance <0.1% Section Height Tolerance <0.1% Section Perpendicular Tolerance <0.1% Ferrite Microstructure % <0.190% Peralite Microstructure % <0.190% Cementite Microstructure % <0.190% Nodule Microstructure adet/mm 100-125 Nodule Maximum size Q/mm 8 Micro Nodularity % 80% + Hardness (HB) 150-250 Tensile Strength N/mm 400 + Elongation 3+ Sand Tempreture on Casting 20°c-45°c Casting Humidity 3.2%-4.0% Wet Compressive Strength 2100-2500gr/cm sq Tensile Strength 20-30gr/cm sq Shatter Index 67-77% Volatile Inclusions <0.001%
All Cast Iron Radiator sections are tested for vertical and horizontal tolerances.
All cast iron radiator sections are tested for vertical and horizontal tolerances. - Sectional Retail Prices
-
Units:Prices:
Product code Section Height Section Width Section Weight Watts Δ50 BTU Δ50 Painted Precious Metal ECS-560
560mm 77mm 8kg 86 296 £66 £84 ECS-760 760mm 77mm 10kg 120 407 £75 £100 ECS-810 810mm 77mm 11.5kg 142 485 £83 £114 The Length of a Radiator is the number of sections multiplied by the Section Width, plus 30mm (15mm for each end cap).
- Specification Table
-
CRANE Elegant 560mm Cast Iron Radiators
Radiator Height:
560mm
(approx. 22”)
Radiator Depth:
190mm
(approx. 7 1/2”)
Product Sections Radiator Width (L) Heat Output (ΔT=50) Code (No.) mm Inches Watts BTU's CE-560-03 3 210mm 8 1/4” 258 Watts 888 BTU's CE-560-04 4 270mm 10 5/8” 344 Watts 1184 BTU's CE-560-05 5 330mm 13” 430 Watts 1480 BTU's CE-560-06 6 390mm 15 3/8” 516 Watts 1776 BTU's CE-560-07 7 450mm 17 3/4” 602 Watts 2072 BTU's CE-560-08 8 510mm 20 1/8” 688 Watts 2368 BTU's CE-560-09 9 570mm 22 1/2” 774 Watts 2664 BTU's CE-560-10 10 630mm 24 3/4” 860 Watts 2960 BTU's CE-560-11 11 690mm 27 1/8” 946 Watts 3256 BTU's CE-560-12 12 750mm 29 1/2” 1032 Watts 3552 BTU's CE-560-13 13 810mm 31 7/8” 1118 Watts 3848 BTU's CE-560-14 14 870mm 34 1/4” 1204 Watts 4144 BTU's CE-560-15 15 930mm 36 5/8” 1290 Watts 4440 BTU's CE-560-16 16 990mm 39” 1376 Watts 4736 BTU's CE-560-17 17 1050mm 41 3/8” 1462 Watts 5032 BTU's CE-560-18 18 1110mm 43 3/4” 1548 Watts 5328 BTU's CE-560-19 19 1170mm 46 1/8” 1634 Watts 5624 BTU's CE-560-20 20 1230mm 48 3/8” 1720 Watts 5920 BTU's CE-560-21 21 1290mm 50 3/4” 1806 Watts 6216 BTU's CE-560-22 22 1350mm 53 1/8” 1892 Watts 6512 BTU's CE-560-23 23 1410mm 55 1/2” 1978 Watts 6808 BTU's CE-560-24 24 1470mm 57 7/8” 2064 Watts 7104 BTU's CE-560-25 25 1530mm 60 1/4” 2150 Watts 7400 BTU's CE-560-26 26 1590mm 62 5/8” 2236 Watts 7696 BTU's CE-560-27 27 1650mm 65” 2322 Watts 7992 BTU's CE-560-28 28 1710mm 67 3/8” 2408 Watts 8288 BTU's CE-560-29 29 1770mm 69 5/8” 2494 Watts 8584 BTU's CE-560-30 30 1830mm 72” 2580 Watts 8880 BTU's CE-560-31 31 1890mm 74 3/8” 2666 Watts 9176 BTU's CE-560-32 32 1950mm 76 3/4” 2752 Watts 9472 BTU's CE-560-33 33 2010mm 79 1/8” 2838 Watts 9768 BTU's CE-560-34 34 2070mm 81 1/2” 2924 Watts 10064 BTU's CE-560-35 35 2130mm 83 7/8” 3010 Watts 10360 BTU's CE-560-36 36 2190mm 86 1/4” 3096 Watts 10656 BTU's CE-560-37 37 2250mm 88 5/8” 3182 Watts 10952 BTU's - Find a Stockist
-
